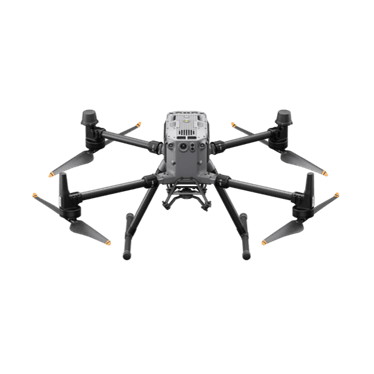

DJI Matrice 350 RTK
The DJI Matrice 350 RTK represents a next-generation flagship drone platform, setting a new benchmark in aerial operations. It introduces an advanced video transmission system and an upgraded control interface, along with a more efficient battery system for extended mission endurance.
Equipped with a comprehensive suite of safety features, substantial payload capacity, and versatile expansion options, the Matrice 350 RTK is designed to enhance efficiency, reliability, and innovation across a wide range of professional applications.
Powerful and Effortless
The Matrice 350 RTK combines durable construction with robust propulsion and an enhanced protection rating, delivering exceptional flight performance. This enables the drone to tackle diverse operational challenges with ease and reliability.
Stability
Equipped with the DJI O3 Enterprise Transmission, the Matrice 350 RTK supports triple-channel 1080p HD live feeds with a maximum transmission range of 20 km. Both the drone and its controller feature a four-antenna transceiver system that intelligently selects the best two antennas for sending signals while simultaneously receiving on all four antennas. This advanced setup enhances anti-interference performance and ensures stable, reliable transmission even in complex environments.
Remote Controller
DJI RC Plus
The DJI RC Plus features a high-brightness 7-inch screen and supports Dual Operator Mode for flexible mission control. Powered by a WB37 external battery, it provides up to 6 hours of operation. With an IP54 rating, it is dustproof and waterproof, and capable of functioning in extreme temperatures from -20°C to 50°C (-4°F to 122°F), ensuring dependable performance in all conditions.
DJI Pilot 2
The system integrates an RGB camera with high dynamic range and excellent low-light performance thanks to its 4/3 CMOS sensor and large pixel size. It includes a mechanical shutter capable of 1/2000 sec capture speed and high-speed burst shooting at 0.7-second intervals, making it ideal for precise aerial imaging and surveying tasks.
Battery Management
TB65 Intelligent Flight Battery
The Matrice 350 RTK is equipped with the TB65 dual-battery system, which supports hot swapping, allowing multiple flights without powering off the drone. Designed for durability, each battery can be charged up to 400 cycles, reducing the overall cost per flight and ensuring long-term reliability.
BS65 Intelligent Battery Station
The BS65 Intelligent Battery Station provides a complete solution for battery charging, storage, and transportation. It offers two operation modes:
Storage Mode: Charges batteries to around 50%, preserving battery health during long-term storage.
Ready-to-Fly Mode: Charges multiple battery sets to approximately 90%, ensuring rapid readiness while extending battery lifespan.
When connected to the DJI RC Plus, the DJI Pilot 2 app displays detailed battery information, including status and health. Users can also configure self-discharge settings, perform firmware updates, export logs, and access other operations with a single tap.
Designed for mobility and convenience, the BS65 features 360° movement wheels, enabling easy transport and smooth relocation of the station between operational sites.
Enhanced Flight Safety
Arm Lock Indicator
The Matrice 350 RTK features a new arm lock detection system that prevents risks associated with unlocked arm sleeves. This provides extra security during flight, allowing operators to focus entirely on maneuvering the drone without worrying about accidental arm release.
Superior Night Vision Camera
Equipped with an advanced FPV night vision camera, the Matrice 350 RTK ensures clear visibility of surroundings and obstacles during nighttime flights. When combined with the PinPoint function, it significantly improves navigation accuracy, offering a safer and more confident flying experience after dark.
6-Directional Sensing & Positioning
The drone integrates a six-directional binocular vision system along with an infrared sensing array, providing full awareness, positioning, and obstacle detection in all directions. This advanced sensing system enhances flight protection, ensuring maximum safety in complex environments.
CSM Radar
The Matrice 350 RTK can be equipped with the CSM Radar, providing 360° obstacle detection, including upward sensing. Capable of detecting even small obstacles up to 30 meters away, this system ensures timely avoidance and significantly enhances flight safety in complex environments.
Payloads
The drone supports a variety of gimbal configurations, including:
Single downward gimbal
Dual downward gimbals
Single upward gimbal
Additionally, an E-Port open interface allows for expanded connectivity and payload integration. With a maximum payload capacity of 2.7 kg, the Matrice 350 RTK can carry up to three payloads simultaneously, offering versatility for applications such as public safety, inspections, and mapping, meeting diverse operational requirements.
DJI Zenmuse L2
Components: Livox LiDAR module, high-accuracy IMU, and mapping camera integrated into a single system.
Capabilities: Real-time 3D data capture for efficient and detailed mapping of complex structures.
Applications: Enhances precision and effectiveness in surveying, mapping, and reconstruction tasks.
DJI Zenmuse P1
Components: Full-frame sensor with interchangeable fixed-focus lenses mounted on a 3-axis stabilized gimbal.
Capabilities: Optimized for photogrammetry missions; improves efficiency, accuracy, and imaging quality.
Applications: Ideal for aerial mapping, surveying, and photogrammetry operations.
DJI Zenmuse H20N
Components:
Starlight sensors in zoom and wide-angle cameras
Dual zoom thermal cameras
Laser rangefinder
Capabilities: Hybrid payload with enhanced low-light imaging, thermal detection, and precise distance measurement.
Applications: Versatile for public safety, inspection, and night operations.
DJI Zenmuse H20 Series
Compatibility: Matrice 350 RTK supports integration of customized payloads via DJI Payload SDK.
Examples: Gas detectors, loudspeakers, multispectral sensors, and other specialized devices.
Applications: Extends the drone’s capabilities to industry-specific tasks, enabling tailored solutions beyond standard payloads.
PSDK Payloads
Compatibility: Matrice 350 RTK supports integration of customized payloads via DJI Payload SDK.
Examples: Gas detectors, loudspeakers, multispectral sensors, and other specialized devices.
Applications: Extends the drone’s capabilities to industry-specific tasks, enabling tailored solutions beyond standard payloads.
Intelligent Operation
High-Precision Mapping
The DJI Matrice 350 RTK supports a variety of flight missions, including Waypoint, Mapping, Oblique, and Linear Flight. It is also equipped with intelligent features such as Terrain Follow and Smart Oblique, which significantly improve the efficiency and accuracy of aerial data collection.
By integrating with DJI Terra, users can rapidly produce high-definition 2D and 3D digital models, achieving exceptional precision and operational efficiency. These advanced mapping capabilities make the Matrice 350 RTK an invaluable tool for professionals in surveying, construction, and geographic information systems (GIS).
Air-to-Ground Coordination
The Matrice 350 RTK seamlessly connects aerial, ground, and cloud operations through advanced features like high-precision PinPoint and cloud-based real-time mapping. After image collection, DJI FlightHub 2 automatically generates a detailed model of the operational site, allowing instant sharing of mission data and commands with both the aircraft and ground teams.
Operators can draw points, lines, and areas directly within the DJI RC Plus or FlightHub 2, facilitating real-time coordination and live-streamed visuals from the drone. This integrated communication system enhances collaboration between teams, ensuring efficient, accurate, and connected mission workflows.
Automated Precision Inspection
The Matrice 350 RTK streamlines inspection workflows with Live Mission Recording, which automatically records flight routes for easy replication—eliminating the need for repetitive manual setup.
It also features AI Spot-Check, which intelligently identifies and repositions the camera to capture consistent images across repeated inspections. Manual fine-tuning is available for enhanced accuracy. These intelligent automation capabilities ensure consistent image quality, greater operational efficiency, and highly reliable inspection results.
DJI Matrice 350 RTK
Matrice 350 RTK Aircraft
2x TB65 Intelligent Flight Battery
1 DJI RC Plus
1x BS65 Battery Station
- 1x WB37 Intelligent Battery
- 1x Pair of Extra Propellers
- 1x Matrice 350 Carrying Case
- Cables and Tools
