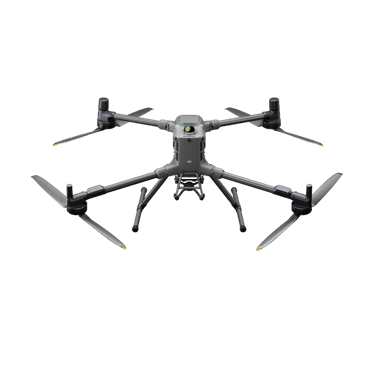

DJI Matrice 400
The DJI Matrice 400 is an advanced professional drone built for demanding industrial and field operations. It delivers up to 59 minutes of flight time and can carry payloads of up to 6 kilograms, making it ideal for heavy-duty missions. With its rotating LiDAR sensor and millimeter-wave radar, the drone ensures exceptional precision in obstacle detection — even in complex environments like power lines.
Thanks to its O4 Enterprise Enhanced Video Transmission and Airborne Relay Video Transmission, operators benefit from stable, long-range connectivity and enhanced safety during flights. The Matrice 400 also supports smart detection, dual visible and thermal imaging, AR projection, and ship-based takeoff and landing, alongside powerful automation features.
Engineered for emergency response, infrastructure inspections, mapping, and construction or AEC projects, this drone offers the performance and reliability professionals need to complete critical missions efficiently.
Extended Flight Endurance and Superior Performance
The Matrice 400 sets a new benchmark in aerial performance, offering up to 59 minutes of forward flight even while carrying payloads, and up to 53 minutes of hover time. This exceptional endurance makes it a reliable companion for long-duration and continuous operations such as search and rescue, firefighting, and large-scale mapping.
With its powerful propulsion system, the drone easily maneuvers around major obstacles — from tall buildings to rugged mountain terrain — while maintaining speeds of up to 25 meters per second. Designed for both efficiency and stability, the Matrice 400 ensures smooth performance even in challenging environments.
Versatile Payload System for Ultimate Flexibility
The Matrice 400 is engineered for unmatched adaptability, effortlessly meeting a wide range of operational needs thanks to its impressive 6 kg payload capacity. It supports smooth configuration changes between single and dual downward gimbals, while an additional third gimbal connector on the underside expands its versatility even further.
With four external E-Port V2 interfaces, the drone can carry up to seven payloads at once, making it an exceptional choice for complex, multi-functional missions.
The M400 seamlessly integrates with a variety of payloads — including the Zenmuse H30 Series, L2, P1, S1 Spotlight, V1 Speaker, Manifold 3, and compatible third-party accessories. This level of flexibility enhances performance across applications and unlocks the full potential of the DJI enterprise ecosystem.

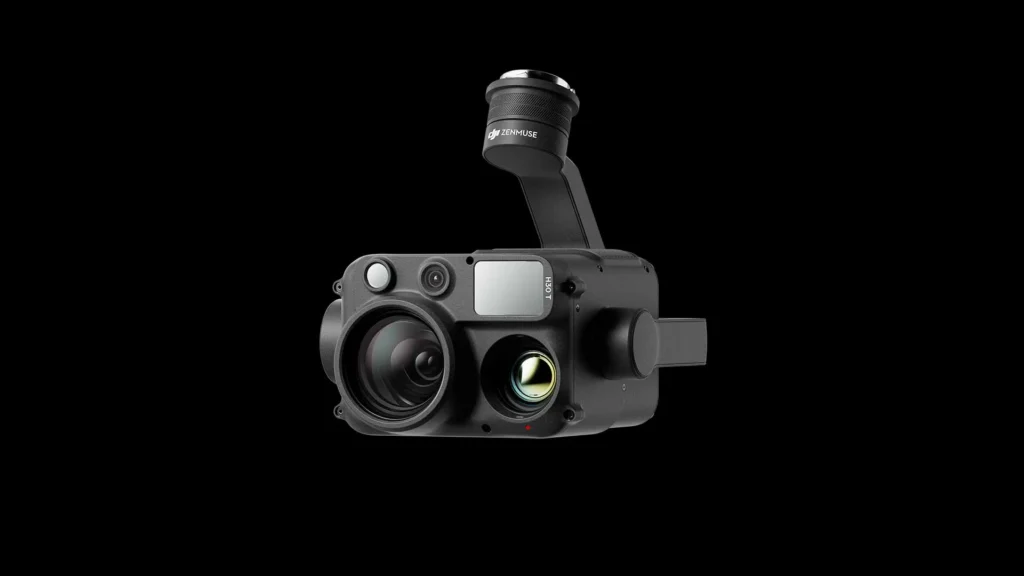

Zenmuse H30 Series
The Zenmuse H30 Series brings together five powerful imaging modules — a wide-angle camera, zoom camera, infrared thermal camera, laser rangefinder, and NIR auxiliary light — all within a single, compact system.
Powered by advanced imaging algorithms, this series redefines clarity and precision in aerial visuals. It delivers outstanding performance in both daylight and low-light environments, overcoming the traditional boundaries of visibility and setting a new standard for professional drone imaging.

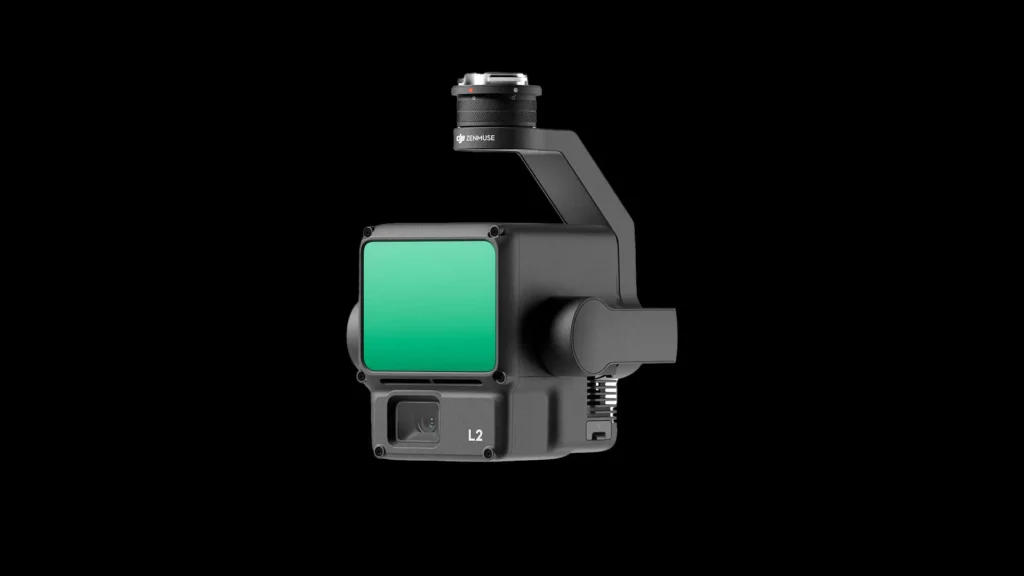

Zenmuse L2
The Zenmuse L2 integrates a frame-based LiDAR sensor, a high-precision self-developed IMU system, and a 4/3 CMOS RGB mapping camera to deliver exceptional accuracy and performance.
Designed for precise and efficient geospatial data collection, it provides professionals with detailed, reliable results for mapping, surveying, and modeling tasks. Optimized for multi-payload drone platforms, the Zenmuse L2 ensures smooth data capture and enhanced productivity across a variety of industrial and engineering applications.

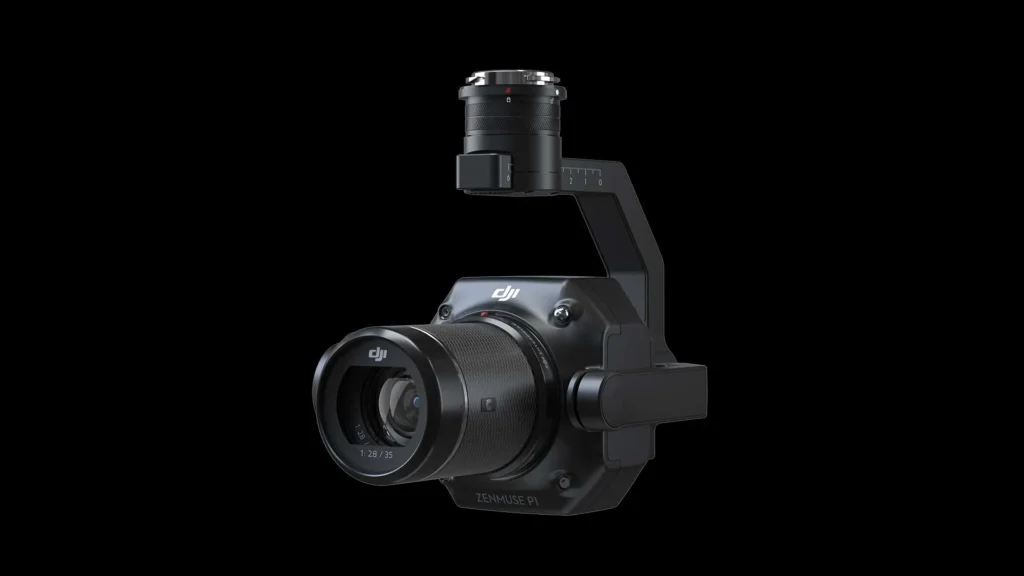

Zenmuse P1
The Zenmuse P1 is equipped with a full-frame sensor and interchangeable fixed-focus lenses mounted on a 3-axis stabilized gimbal, ensuring outstanding image clarity and stability during every flight.
Specially designed for photogrammetry missions, this payload delivers unmatched precision and efficiency, significantly improving data quality and reducing mission time. The Zenmuse P1 sets a new standard for professional aerial mapping and surveying applications.
Zenmuse S1
The Zenmuse S1 is a professional-grade spotlight designed for multi-payload drone platforms. Utilizing LEP technology, it provides high-intensity illumination over an extended range, ensuring clear visibility even in challenging conditions.
With multiple lighting modes, the S1 is ideal for public safety operations, emergency response, infrastructure inspections, and nighttime missions, offering reliable performance whenever bright, precise lighting is essential.

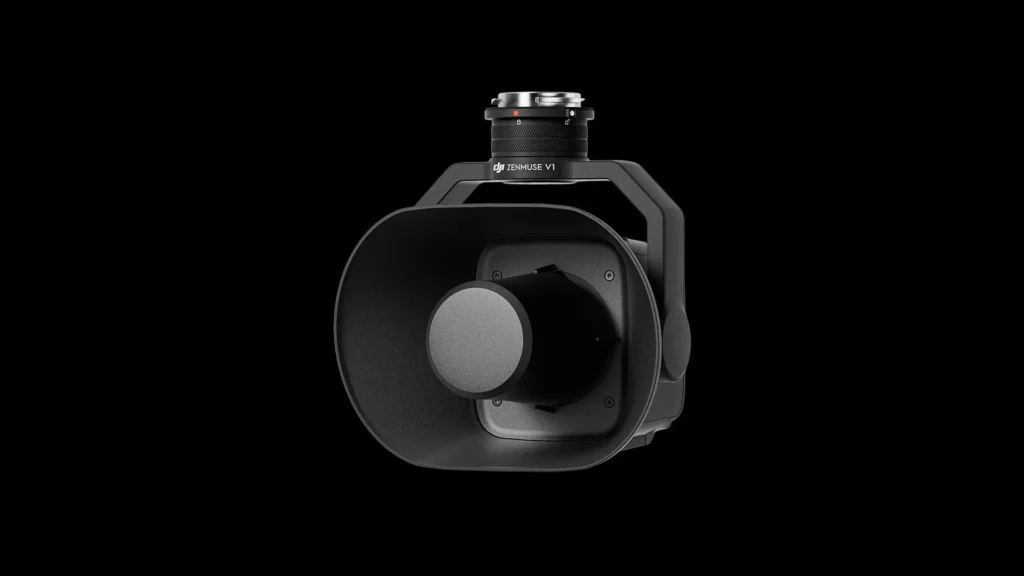

Zenmuse V1
The Zenmuse V1 is a powerful loudspeaker designed for multi-payload drone platforms, offering high-volume output and an extended broadcast range.
Equipped with multiple broadcasting modes, it is ideal for public safety alerts, emergency response, and other critical operations where clear communication over long distances is essential.

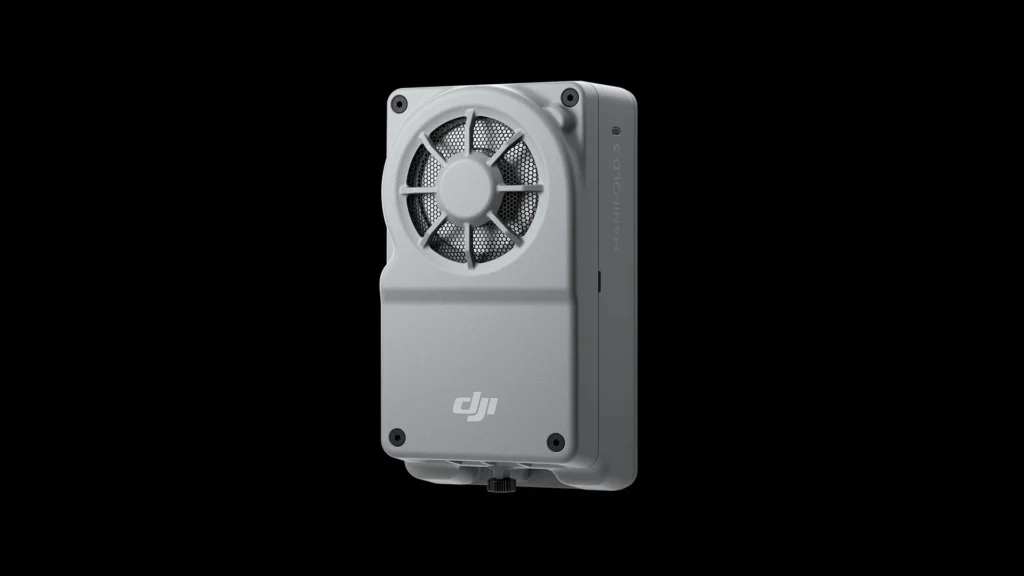

Manifold 3
The Manifold 3 packs an impressive 100 TOPS of computing power into a compact 120g unit, making it a powerhouse for advanced drone operations.
Specifically designed for integration with the Matrice 400 platform, it significantly boosts processing performance and operational efficiency, enabling complex tasks and real-time data analysis directly on the drone.
ChatGPT said:
Flight Time
You can estimate the Matrice 400’s flight duration based on the payload configuration using the table provided below. This helps plan missions more accurately, ensuring optimal performance and safe operation for various payload setups.
Power-Line-Level Obstacle Detection
The Matrice 400 is equipped with a cutting-edge obstacle sensing system that integrates rotating LiDAR, high-precision millimeter-wave radar, and full-color low-light fisheye cameras for outstanding detection accuracy.
This advanced system can identify even small obstacles, including high-voltage power lines in mountainous or challenging terrain, and performs reliably in complete darkness. It also maintains detection performance through rain and fog, ensuring enhanced operational safety in adverse weather conditions.
Reliable Performance in Extreme Conditions
The Matrice 400 is built to operate reliably in challenging environments, thanks to its IP55-rated protection against dust and water. It maintains consistent performance across a wide temperature range, from -20°C to 50°C (-4°F to 122°F), ensuring dependable results even in the harshest conditions.
Enhanced Video Transmission Stability
O4 Enterprise Video Transmission Technology
The Matrice 400 is equipped with a ten-antenna system on the drone and a high-gain phased array antenna on the remote controller, allowing video transmission up to 40 km. It supports the sub-2G frequency band and, when paired with two DJI Cellular Dongle 2 units, automatically connects to the strongest available network, ensuring a stable signal even in urban interference zones or remote locations.
Airborne Relay Video Transmission
The Matrice 400 also features an integrated relay module, enabling one drone to relay video signals from a higher altitude to extend coverage for another Matrice 400 operating at a distance. This capability significantly enhances transmission range, making it ideal for search and rescue operations and inspections in mountainous or challenging terrain.
Fusion Positioning
The Matrice 400 features an omnidirectional sensing system that combines rotating LiDAR, high-precision millimeter-wave radar, and full-color low-light fisheye cameras to provide exceptional positioning accuracy.
This advanced system ensures stable flight near challenging structures, such as glass facades or wind turbine blades, and allows the drone to safely return from complex environments like building edges, mountain bases, or bridge sides, even without a pre-set return point.
Full-Color Vision Assist
The Matrice 400 is equipped with four full-color low-light fisheye cameras, providing Full-Color Vision Assist to enhance flight awareness and safety. This system helps pilots navigate complex environments more confidently, even in low-light conditions.
Advanced Intelligence and Operational Efficiency
By utilizing the Zenmuse H30 Series’ visible and thermal imaging, the Matrice 400 can accurately detect vehicles, vessels, and individuals during search and rescue operations or standard flight missions. It also offers model switching, expanding its versatility across different tasks, while providing high-resolution grid imaging and advanced tracking features for precise data collection and monitoring.
AR Projection
Power Line AR
During power grid inspections, the Matrice 400’s obstacle sensing system identifies overhead wires and displays clear AR lines on the remote controller screen, improving situational awareness and supporting safer flight operations.
Map View AR
For urban missions, day or night, the remote controller shows building and landmark names in real time, while highlighting main roads with distinct lines, allowing pilots to navigate efficiently and confidently in complex environments.
Live Annotations
Operators can mark points directly on the remote controller screen to identify locations, draw lines to measure distances between multiple points, and outline areas to calculate their size — all without prior modeling. Measurement results can be synchronized with DJI FlightHub 2, enhancing team coordination and mission efficiency.
AR Flight Waypoint
The Matrice 400 offers real-time route previews during Return-to-Home (RTH), obstacle sensing, and FlyTo operations. During landing, the AR Aircraft Shadow feature helps pilots verify the landing site accurately, ensuring safer and more precise operations.
Real-Time Terrain Following
The Matrice 400 supports Real-Time Terrain Follow in any horizontal direction, keeping a stable relative altitude above the ground during both manual and automated flights.
For large-scale search and rescue missions, this feature maintains consistent ground subject sizing on the remote controller screen, reducing the need for frequent zoom adjustments and improving operational efficiency. In mapping applications, it ensures a consistent ground sampling distance (GSD), enabling high-precision data capture for reliable and accurate results.
Takeoff and Landing on Vessels
Flight Modes
Cruise: Activate cruise control mode to guide the drone along a set path without constant stick input, simplifying long-distance flights and linear inspections.
FlyTo: In emergencies or disaster scenarios, the drone autonomously adjusts its flight path and speed according to environmental conditions, ensuring it reaches the designated location safely without manual control.
Smart Track: Smart Track provides accurate subject tracking with automatic zoom adjustments, enabling smooth transitions between targets. It can also reacquire subjects automatically if temporarily obscured.
POI (Point of Interest): The POI mode allows for continuous observation and 3D modeling of buildings while orbiting a set area, greatly enhancing the efficiency of fixed-point inspections and modeling tasks.
Autmated Operations Made Easier
Power Line Follow with Zenmuse L2
Equipped with the L2 LiDAR system, the Matrice 400 can autonomously follow power transmission and distribution lines. Its rotating LiDAR detects obstacles in real time, allowing the drone to automatically avoid crossing lines and maintain a safe flight path.
Slope Route and Geometric Route
The Matrice 400 supports the planning and execution of slope and geometric flight routes via DJI Pilot 2 or DJI FlightHub 2. This capability streamlines detailed aerial surveys of building facades, slopes, and inclined surfaces, as well as the mapping of individual structures, ensuring efficient and high-precision data collection.
Software
DJI Flighthub 2
FlightHub 2 is optimized for the Matrice 400, offering cloud-based remote management of the drone. Operators can control the aircraft’s flight attitude, manage official payloads, and perform remote takeoff, landing, and live flight operations. It also supports advanced flight route planning, including slope routes, geometric routes, and other customizable configurations. During multi-drone missions, users can synchronize and display multiple live video streams, providing a seamless air-ground integrated workflow.
DJI Terra
DJI Terra is a 3D reconstruction software based on photogrammetry technology. It enables accurate 2D and 3D modeling using visible light imagery, along with point cloud processing from the Zenmuse L2. Designed as an ideal companion for the Matrice 400, it provides a complete solution for industries such as land surveying, mapping, power line inspection, emergency response, construction, and forestry.
DJI Modify
DJI Modify delivers advanced 3D mesh and point cloud editing capabilities. When used with the Matrice 400 and DJI Terra, it forms a comprehensive aerial surveying and modeling solution, supporting model creation, refinement, and sharing for professional applications.
* Customers who purchase the Matrice 400 and link it to FlightHub 2 at activation will receive allocated live streaming minutes, map imagery quotas, and cloud storage space.
