DJI Agras T50
Step into the future of farming with the DJI Agras T50, the latest advancement in aerial spraying and spreading technology. Building on the success of the Agras series, the T50 brings unmatched efficiency and performance to agricultural drone operations.
The Agras T50 features a robust coaxial twin-rotor propulsion system, providing exceptional stability and maneuverability, even when carrying heavy payloads of up to 40 kg for spraying or 50 kg for spreading. Its split-type torque-resistant frame ensures balanced and controlled flight, optimizing performance during demanding agricultural tasks.
With the Dual Atomizing Spraying System, the T50 delivers precise and uniform application of fertilizers, pesticides, and herbicides, promoting healthy crops and higher yields. Front and rear phased array radars enhance environmental awareness, improving safety and operational efficiency under all conditions.
Equipped with a sophisticated binocular vision system, the Agras T50 performs reliably across surveying, spraying, and spreading missions, ensuring stable operation and consistent results. Experience precision agriculture at its finest with the DJI Agras T50, unlocking new levels of productivity and sustainability for modern farming.
Advanced Features – DJI Agras T50
Heavy Payload: Supports up to 40 kg for spraying and 50 kg for spreading, handling large-scale agricultural tasks with ease.
High Flow Rate: Achieves 16 L/min for spraying and 108 kg/min for spreading, ensuring efficient application.
Signal Stability: Equipped with 2 km O3 transmission, with optional DJI Relay for extended range and reliable connectivity.
Multidirectional Obstacle Sensing: Combines dual radars and a binocular vision system for comprehensive obstacle detection and safe flight.
Terrain Sensing: Operates effectively on slopes up to 50°, maintaining stability and precision.
All-Scenario Adaptability: Supports fully automatic or manual operation, adapting to diverse farming requirements.
Four Sprinkler Kit (Optional): Enables reversible directional spraying during flight, with a flow rate of 24 L/min, enhancing flexibility and coverage.
Upgraded Spraying System – DJI Agras T50
The DJI Agras T50’s Dual Atomizing Spraying System boasts an impressive ultra-large flow rate of up to 16 L/min (2-sprinkler spraying), ensuring rapid and precise application of fertilizers, pesticides, and herbicides. Its capability to produce uniform and fine spray droplets, coupled with a leak-proof design, sets a new standard for spraying efficiency. Additionally, for operations requiring high application volume, the Agras T50 can be equipped with an extra pair of centrifugal sprinklers, boosting the flow rate to 24 L/min (4-sprinkler spraying). Moreover, during manual flight, the Reverse Directional Spray feature with four sprinklers simplifies operations by eliminating the need for frequent turns.
Dual Pumps
The T50’s dual pump system delivers a flow rate of up to 24 L/min, a 100% increase over previous models, making it ideal for fields, orchards, and high-temperature environments.
Dual Atomizing Centrifugal Sprinklers
Droplet sizes are adjustable from 50 to 500 μm, offering flexibility to meet diverse chemical types and application requirements.
Redesigned Solenoid Valves
New solenoid valves ensure precise start and stop control, eliminating any leakage during operations for consistent and reliable spraying performance.
Spreading System – DJI Agras T50
The DJI Agras T50 introduces an upgraded spreading system, featuring a new spreader and spiral channel spinning disk, significantly improving efficiency and consistency in agricultural applications.
Enhanced Payload Capacity: Supports up to 50 kg, ensuring ample coverage for various tasks.
Maximized Capacity and Quick Refills: With a 75 L maximum capacity and expanded loading gate, refills are faster, minimizing downtime.
Smooth Spreading: The spreader’s torque is doubled and the discharge hatch enlarged, achieving a flow rate of up to 108 kg/min for efficient spreading.
Uniform Spreading: The spiral channel spinning disk ensures even distribution across the target area, optimizing application effectiveness.
Low Rate Spreading: For precision applications, small hopper gates can be activated to improve spreading accuracy at low flow rates.
Real-Time Weighing: Equipped with a weighing sensor, the T50 provides real-time monitoring of remaining payload, enhancing operational efficiency and planning.
Effortless Maintenance: The spreader is easy to disassemble and clean, streamlining maintenance and maximizing uptime
Dual Radar and Binocular Vision System – DJI Agras T50
The Agras T50 features front and rear Active Phased Array Radars, doubling the number of RF transceiver channels for enhanced detection precision and 360-degree omnidirectional awareness. This enables multidirectional obstacle sensing and intelligent detouring, greatly improving operational safety.
Complementing the radars, dual Binocular Vision sensors allow the T50 to accurately perceive terrain features and detect obstacles in fine detail. This advanced system supports automatic obstacle avoidance and fully automatic terrain-following, even in complex environments like steep slopes and orchards, ensuring smooth and safe operations.
Reliability Tested
The T50 has undergone hundreds of rigorous reliability tests, confirming its robust construction and dependable performance for demanding aerial operations

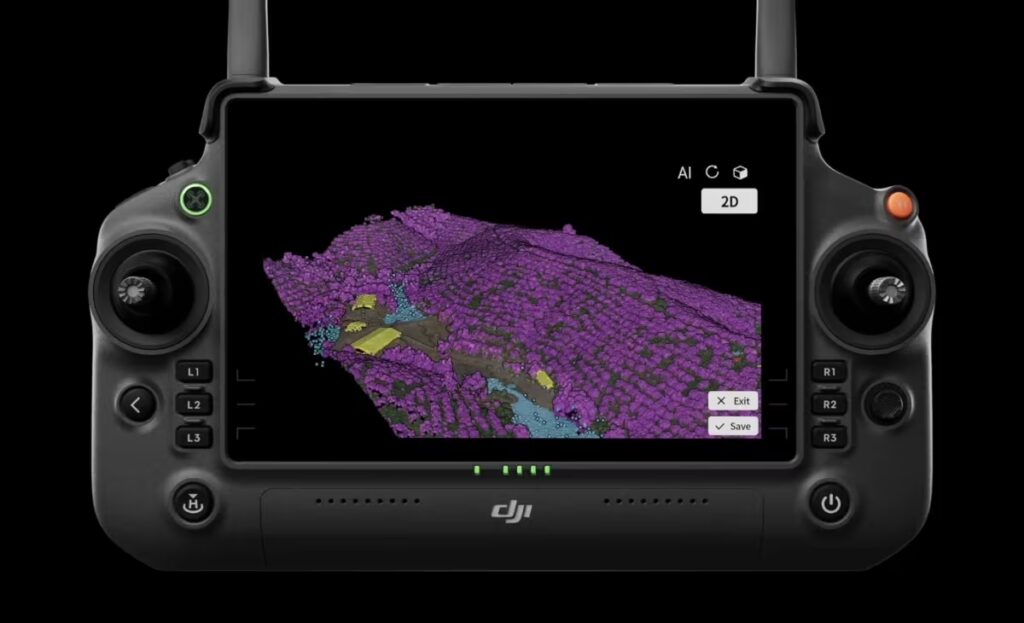

Unparalleled Versatility – DJI Agras T50
The Agras T50 combines aerial surveying, spraying, and spreading into a single drone, eliminating the need for multiple devices. Its high-resolution FPV gimbal camera captures real-time images of fields and orchards, providing valuable insights into crop health and field conditions.
When paired with the DJI RC Plus and RTK services, the T50 enables the creation of high-definition maps, forming the basis for automatic flight routes. With a simple push of a button, the drone can take off and perform fully automatic operations, streamlining workflows and maximizing efficiency.
Using the advanced capabilities of DJI RC Plus, the T50 can accurately identify fruit trees and obstacles in real time. Based on this data, it generates fully automatic 3D flight routes tailored to the orchard’s layout, ensuring efficient and comprehensive surveying. This allows farmers and agronomists to make informed decisions for optimal orchard management.

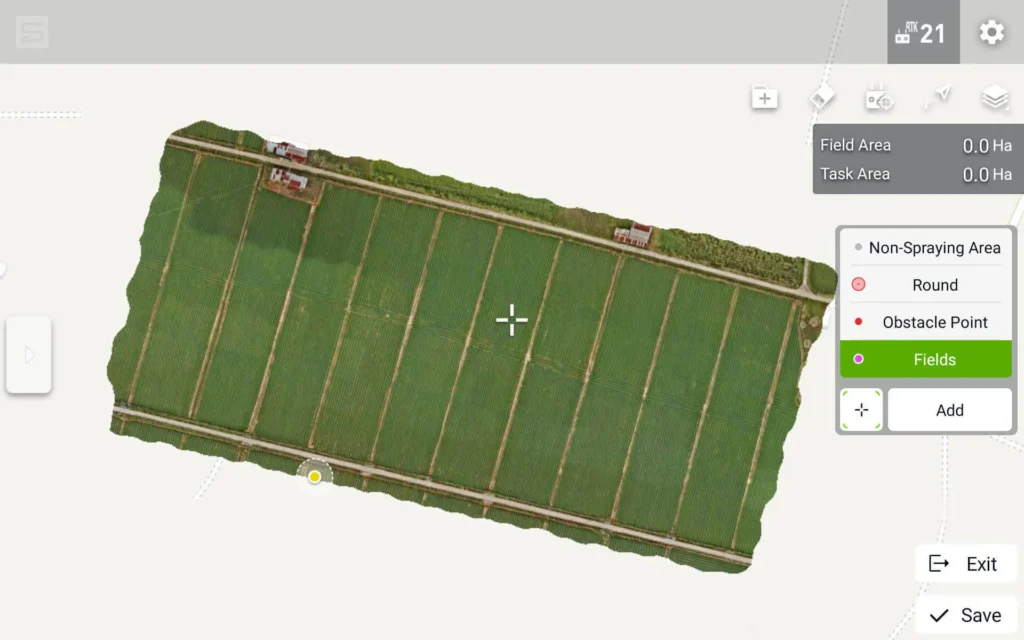

Area Route – DJI Agras T50
The Area Route feature enables efficient field mapping, covering a 13-hectare field in just 10 minutes. It allows the drone to survey the entire area, automatically identify field boundaries, and detect potential obstacles. This intelligent system helps the T50 plan precise flight routes, ensuring complete coverage and accurate data collection to support effective agricultural management.

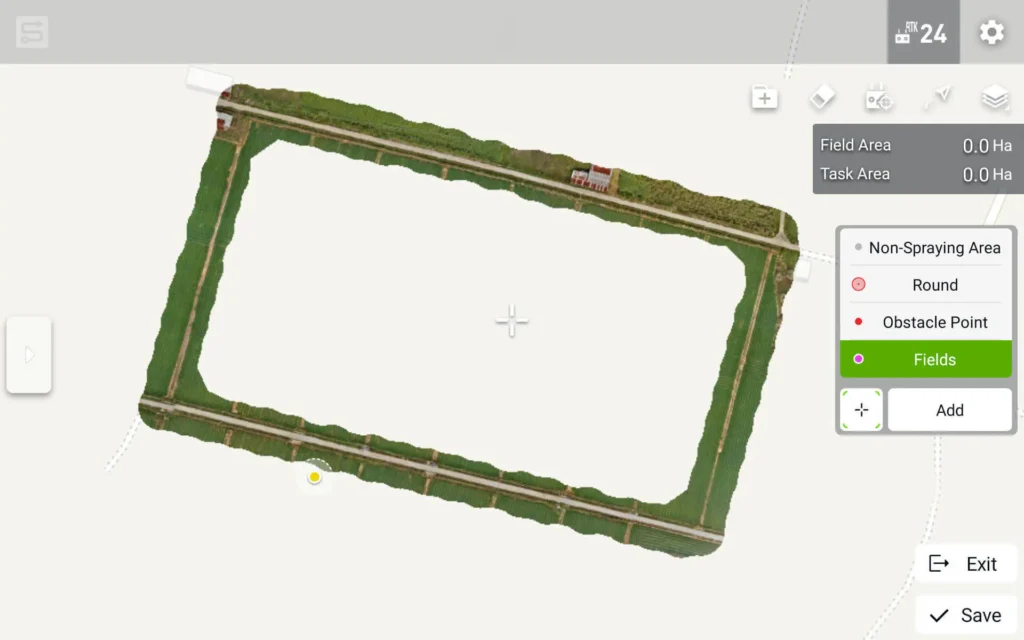

Boundary Route – DJI Agras T50
The Boundary Route function is ideal for fields without central obstacles, enabling the T50 to map the boundaries of a 13-hectare field in just 3 minutes. This feature quickly captures essential boundary data, providing fast and precise mapping for streamlined operations. By simplifying this process, farmers can focus on efficient field management with confidence.
DJI RC Plus
The DJI RC Plus sets a new benchmark in drone control with its 7-inch high-brightness display and powerful 8-core processor, delivering smooth and responsive operation. Its intelligent route planning optimizes flight paths to minimize distance and maximize efficiency, while manual mode gives full control for precise adjustments when needed.
Equipped with an upgraded quad-antenna O3 Transmission system, the RC Plus ensures reliable connectivity even in areas without cellular coverage, providing a 2 km transmission range. Its advanced anti-interference capabilities maintain signal integrity, which is particularly valuable when operating over tall crops or challenging terrains.
DJI Relay
The DJI Relay system is designed for situations where tall obstacles block the line of sight between the drone and the remote controller. By positioning the relay strategically, it bounces the signal, ensuring continuous and reliable real-time video transmission. This feature enhances safety and operational efficiency in challenging environments, allowing pilots to maintain clear visibility and full situational awareness throughout the flight.
DJI Agriculture Ecosystem
Build a smart agriculture ecosystem by combining the DJI Agras T50 with the Mavic 3M, leveraging multispectral data for optimized farming practices. Perform precise farm surveys and generate prescription maps to enable variable-rate fertilization and crop protection, reducing resource use while maximizing yields. Conduct quick field inspections to detect growth stress early and address issues promptly, supporting proactive and efficient farm management.
Fuel-Efficient and Fast Charging – D12000iEP & DB1560
The D12000iEP all-purpose variable frequency charging station utilizes electronic fuel injection technology, achieving up to 15% fuel savings for more efficient operations. The DB1560 intelligent flight battery, equipped with an air-cooled radiator, can be fully charged in just 9 minutes, minimizing downtime. Additionally, the charging module is removable, allowing flexible use with both mains power and fuel-based charging, supporting ultra-fast, continuous work.
DJI Agras T50 – Included Accessories
Agras T50 Drone ×1
T50 Batteries ×2
Charging Station ×1
2600W Cables ×2
