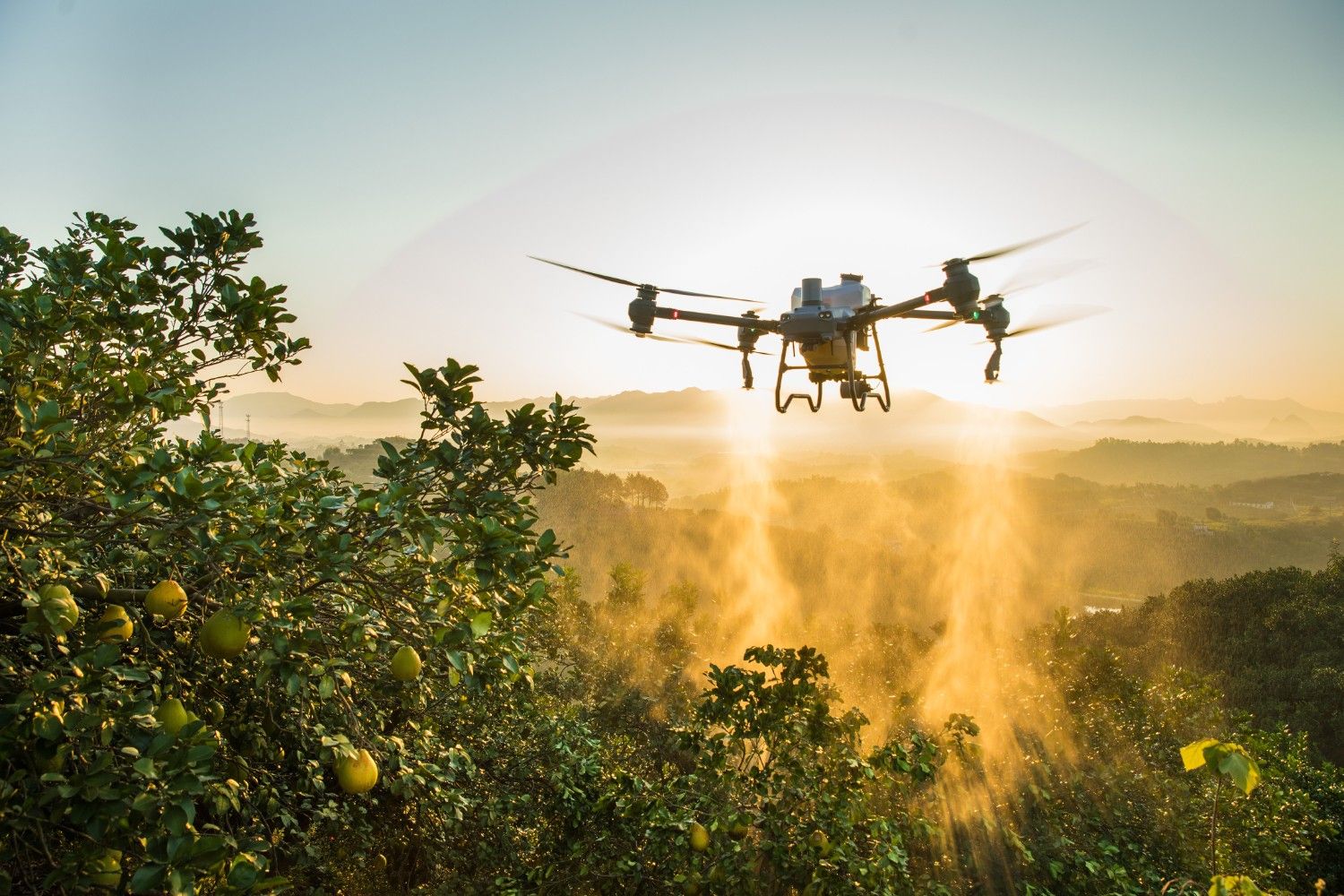

DJI Agras T50 Technical Specifcations
General Specifications
| Category | Specification |
|---|---|
| Weight | 39.9 kg (excl. battery) 52 kg (incl. battery) |
| Max Takeoff Weight[1] | Max takeoff weight for spraying: 92 kg (at sea level) Max takeoff weight for spreading: 103 kg (at sea level) |
| Max Diagonal Wheelbase | 2200 mm |
| Dimensions | 2800×3085×820 mm (arms and propellers unfolded) 1590×1900×820 mm (arms unfolded and propellers folded) 1115×750×900 mm (arms and propellers folded) |
| Hovering Accuracy Range (with strong GNSS signal) | D-RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm D-RTK disabled: Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm) |
| RTK/GNSS Operating Frequency | RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2 GNSS: GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1 |
| Max Configurable Flight Radius | 2000 m |
| Max Wind Resistance | 6 m/s |
Propulsion System – Motors
| Specification | Value |
|---|---|
| Stator Size | 100×33 mm |
| KV | 48 rpm/V |
| Power | 4000 W/rotor |
Propulsion System – Propellers
| Specification | Value |
|---|---|
| Material | Nylon carbon fiber filament |
| Dimension | 54 in (1371.6 mm) |
| Propeller Rotation Diameter | 1375 mm |
| Quantity | 8 |
Dual Atomizing Spraying System – Spray Tank
| Specification | Value |
|---|---|
| Material | Plastic (HDPE) |
| Volume | 40 L |
| Operating Payload [1] | 40 kg[1] |
| Quantity | 1 |
Dual Atomizing Spraying System – Sprinklers
| Specification | Value |
|---|---|
| Model | LX8060SZ |
| Quantity | 2 |
| Nozzle Distance | 1570 mm (Rear Nozzles) |
| Droplet Size | 50-500 μm |
| Effective Spray Width [2] | 4-11 m (at a height of 3 m above the crops) |
Dual Atomizing Spraying System – Delivery Pumps
| Specification | Value |
|---|---|
| Type | Impreller pump (magnetic drive) |
| Quantity | 2 |
| Single Pump Flow Rate | 0-12 L/min |
| Max Flow Rate | 16 L/min (2 nozzles); 24 L/min (4 nozzles) |
T50 Spreading System
| Specification | Value |
|---|---|
| Compatible Material Diameter | 0.5-5 mm dry granules |
| Spread Tank Volume | 75 L |
| Spread Tank Internal Load [10] | 50 kg |
| Spread Width | 8 m |
Phased Array Radar System
| Specification | Value |
|---|---|
| Model | RD241608RF (forward phased array radar); RD241608RB (rear phased array radar) |
| Terrain Follow | Max slope in Mountain mode: 20° Altitude detection range: 1-50 m Stabilization working range: 1.5-30 m |
| Obstacle Avoidance [4] | Obstacle sensing range (multidirectional): 1-50 m FOV: Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone) Rear phased array radar: vertical 360°, horizontal ±45° Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s. Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking) Sensing direction: 360° multidirectional sensing |
Binocular Vision System
| Specification | Value |
|---|---|
| Measurement range | 0.5-29 m |
| Effective Sensing Speed | ≤10 m/s |
| FOV | Horizontal: 90°, Vertical: 106° |
| Operating Environment | Adequate light and discernible surroundings |
Remote Controller
| Specification | Value |
|---|---|
| Model | RM700B |
| Operating Frequency [5] | 2.4000-2.4835 GHz, 5.725-5.850 GHz |
| Max Transmission Distance | 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE); (unobstructed, free of interference, and at an altitude of 2.5 m) |
| Wi-Fi Protocol | Wi-Fi 6 |
| Wi-Fi Operating Frequency [5] | 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz |
| Bluetooth Protocol | Bluetooth 5.1 |
| Bluetooth Operating Frequency | 2.4000-2.4835 GHz |
| GNSS | GPS+Galileo+BeiDou |
| Screen | 7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2 |
| Operating Temperature | -20° to 50° C (-4° to 122° F) |
| Storage Temperature Range | Less than one month: -30° to 45° C (-22° to 113° F) One to three months: -30° to 35° C (-22° to 95° F) Six months to one year: -30° to 30° C (-22° to 86° F) |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| Internal Battery Runtime | 3 hours 18 minutes |
| External Battery Runtime | 2 hours 42 minutes |
| Charging Type | It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger. |
| Charging Time | 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger) |
DB1560 Intelligent Flight Battery
| Specification | Value |
|---|---|
| Model | DB1560 Intelligent Flight Battery (BAX702-30000mAh-52.22V) |
| Weight | Approx. 12.1 kg |
| Capacity | 30000 mAh |
| Nominal Voltage | 52.22 V |
D12000i Multifunctional Inverter Generator
| Specification | Value |
|---|---|
| Output Channel | 1. DC charging output 42-59.92V/9000W 2. Power supply for air-cooled heat sink 12 V/6 A 3. AC output 230V/1500W or 120V/750W [8] |
| Battery Charging Time | To fully charge one battery (T40 battery) takes 9-12 mins |
| Fuel Tank Capacity | 30 L |
| Starting Method | Starting the Generator via the One-Button Start Switch |
| Max Power of Engine | 12000 W |
| Fuel Type | Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10% (*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%) |
| Reference Fuel Consumption [9] | 500 ml/kWh |
| Engine Oil Model | SJ 10W-40 |
C10000 Intelligent Power Supply
| Specification | Value |
|---|---|
| Model Number | CSX702-9500 |
| Dimensions | 400 × 266 × 120 mm |
| Weight | Approx. 11.4 kg |
| Input/Output | Input (Main): 220-240 VAC, 50/60 Hz, 24 A MAX Input (Auxiliary): 220-240 VAC, 50/60 Hz, 24 A MAX Output: 59.92 VDC MAX, 175 A MAX, 9000 W MAX Input (Main): 100-120 VAC, 50/60 Hz, 16 A MAX Input (Auxiliary): 100-120 VAC, 50/60 Hz, 16 A MAX Output: 59.92 VDC MAX, 60 A MAX, 3000 W MAX |
| Charging Time | Fully charges a battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery) |
| Protection Functions | Over-voltage, over-charge, under-voltage and over-temperature protection. |
| Charging Safety | AC wire protection, power wire protection, and charge connector protection |
Relay
| Specification | Value |
|---|---|
| Model | RL01-65 |
| Dimensions | 120×110×100 mm |
| Weight | ≤575 g |
| Input Voltage [6] | 9 V3 A / 12 V2.5 A / 15 V2 A |
| Power Consumption | 9 W (SRRC), 12 W (FCC) |
| Capacity | 6500 mAh |
| Operating Time | 4 hours |
| Operating Frequency [5] | 2.4000-2.4835 GHz, 5.725-5.850 GHz |
| Max Transmission Distance | 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC) (unobstructed, free of interference, and at a flight altitude of 2.5 m) |
| Charging Time | 2 hours and 20 minutes (when using a standard DJI charger) |
| IP Rating [6] | IP55 |
[1] Operating payload is the recommended payload for normal operation.
[2] Effective spray width may vary depending on environmental conditions.
[4] Obstacle avoidance performance may vary depending on environmental conditions.
[5] Frequency bands may vary by region.
[6] IP rating tests were conducted under controlled laboratory conditions.
[8] AC output power may vary by region.
[9] Fuel consumption may vary depending on operating conditions.
[10] Internal load capacity may vary depending on material density.
